OHIO researchers Faiz Rahman, Savas Kaya receive $550,000 NSF award for next-generation nanolithography

A new U.S. National Science Foundation award will support Dr. Faiz Rahman and Dr. Savas Kaya in developing an advanced electron-beam lithography technique capable of creating features smaller than 5 nanometers. The three-year, $550,000 project runs from Sept. 1, 2026, through Aug. 31, 2029.

Electron-beam lithography is an important tool for fabricating extremely small customized structures, but producing features approaching molecular dimensions remains technically challenging.

The new project seeks to overcome these limits by combining a very fine electron beam with deep-ultraviolet radiation and singlet oxygen, a highly reactive form of oxygen. The electron beam breaks long polymer chains in the resist into smaller fragments, while singlet oxygen helps remove those fragments during patterning. This approach could allow extremely small openings to be produced directly in the resist in a single-step process.

The research aims to demonstrate patterning at the sub-5-nm scale, a capability increasingly important for semiconductor manufacturing and potentially valuable in photonics, bioengineering, nanomaterials and biomedical applications. The resulting nanoscale patterns could also be used as templates for removing or depositing materials and for fabricating photomasks needed for future generations of microelectronic devices.

The work will be conducted at Ohio University’s Russ Research Opportunity Center (RROC) and will strengthen NQPI’s experimental capabilities in nanofabrication and nanoscale science.

According to Rahman, an existing scanning electron microscope will be converted into an electron-beam lithography system for the project. The research will also provide training opportunities for postdoctoral and graduate researchers.

The award highlights the interdisciplinary strengths of NQPI and Ohio University in nanotechnology, advanced manufacturing, materials science and device fabrication, while establishing new capabilities for creating structures at dimensions of only a few nanometers.

For more information: National Science Foundation

Locusts get a sensory assist from nanomaterials

Researchers are exploring how insects could serve as sensing systems in environments that are difficult or dangerous for humans to access. Research from Washington University in St. Louis combines insects’ biological abilities with engineering to potentially detect hazards, map areas and gather information in challenging environments.

“We marry the best biology has to offer with engineering principles to create a superior sensing system,” said Barani Raman, the Dennis & Barbara Kessler Professor in biomedical engineering at the WashU McKelvey School of Engineering.

Raman and his colleague Srikanth Singamaneni, the Lilyan & E. Lisle Hughes Professor in mechanical engineering and materials science, are senior authors of the research.

Both biological and artificial chemical sensing systems have drawbacks, Singamaneni said. A locust’s olfactory system is extremely sensitive and can detect faint odors that guide its behavior. But even with 50,000 olfactory receptor neurons in each antenna, it can’t identify a wide enough range of chemical compounds. Meanwhile, synthetic sensors don’t perform as well as more nimble living creatures, but they can be very accurate at detecting specific compounds. Why not combine the two?

“Both biological and artificial chemical sensing approaches have their strengths and drawbacks,” said Singamaneni, but by combining them, “you can cast a broader net.” Here, they added an ultralight, highly porous nanomaterial coating, known as surface-enhanced Raman scattering (SERS) substrate, to the locusts’ antennae.

SERS is a technique that boosts signals from molecules on or near nanostructure metal surfaces; it’s especially useful for detecting trace chemicals. In this case, researchers used a collagen foam applied to the antennae or wings. The foam augmented the insect’s odor-detecting skills without interfering with its other functions.

Singamaneni’s lab specializes in designing and synthesizing these types of nanomaterials. He has been working with plasmonic nanostructures as long as Raman has been mapping locust sensory circuits. They melded their research, and it paid off. Locusts equipped with the foam outperformed non-SERS locusts as well as synthetic chemical sensors, improving odor-detection performance across all chemicals tested, including the chemical signature for TNT.

In a series of tests, their hybrid systems successfully detected a wider range of smells without affecting the insect’s normal functions.

Raman said a key challenge in chemical sensing is they often don’t know what molecules they’re targeting. The foam attached to the antenna helps identify particular chemical species, he noted. The biology and the chemical sensing parts complement each other.

“It clearly showed the best of the two worlds can be merged,” he said.

For more information: Advanced Materials

Image: A future hybrid system could deploy locusts like this one to detect chemical vapors in search-and-rescue operations, or war zones, quickly identifying particular chemicals based on neural response signatures in the organism and pinpointing their locations before responders enter the scene. The foam on the antenna and wing can enhance an organism’s innate sensory system, collect samples and detect trace chemical signatures. (Photo: Raman lab)

Enhancing hidden defects to strengthen metal materials

Scientists have discovered a way to use defects in crystals to create stronger materials. By organizing these imperfections into dense networks, researchers strengthened two metal alloys without changing their chemical composition.

Notably, this method significantly increased both the amount of stress the metals could withstand and their resistance to gradual warping at high temperatures. These results suggest that adding a layer of engineered defects to structural materials could complement conventional materials design, said Andreas Bezold, lead author of the study and an adjunct assistant professor of materials science and engineering at The Ohio State University.

“Defects are very important to learn more about, because by understanding how they interact with a material’s internal structure helps us design stronger materials,” he said.

Built on previous Ohio State research that showed how microscopic defects that form during deformation can be turned into layers that strengthen the structure, this team’s approach is the first to introduce densities that fully enrich these alloys. Using this method to develop alloys with more advanced properties could help scientists create more sustainable, longer-lasting materials.

“We wanted to make these strengthening structures a deliberate part of the material’s design,” said Bezold. “So it was fascinating to see how defects could have such a positive effect on the overall durability of the alloys.”

To measure how defects could strengthen metal, researchers first deformed the crystals in a cobalt-nickel-based superalloy and a cobalt-chromium-tungsten alloy, then used heat to slowly age them. This process created atomically thin, dense features in the structure that scientists could analyze.

Utilizing a combination of two techniques, transmission electron microscopy and computer simulations, the team found that the resulting boost in strength was linked to how atoms were arranged around the structural defects. Altering this complex formation could influence the strength of the material.

“Seeing the strengthening process on the atomic scale was quite stunning, since despite being associated with damage, the right defects with the right structure and chemistry can actually make a material stronger,” said Michael Mills, co-author of the study and a professor of materials science and engineering at Ohio State.

In the future, this method could be used to create high-strength alloys for technologies that have to withstand high temperatures, such as aircraft turbine engines or power plant machinery. For now, Bezold’s team is helping pave the way for richer design principles in engineering.

“This is a field that is quickly becoming very exciting,” he said. “We hope that this idea becomes a new lever that strengthens and pushes the limits of material engineering even further.”

For more information: Science

Common metal could unlock a cheaper path to quantum materials

Researchers have created a cobalt-based thin film that could offer a lower-cost approach to developing materials for quantum research. By adding about 4% cobalt to sodium antimonate, scientists created localized honeycomb structures that produce strong magnetic interactions associated with Kitaev-type quantum materials without disrupting the material’s larger crystal structure.

Kitaev materials are studied because some may support quantum spin liquids, unusual states in which atomic spins remain dynamic instead of settling into conventional magnetic order. Research has often relied on compounds containing scarce metals such as ruthenium and iridium.

“Previous work in this area has largely been limited to rare metals like ruthenium and iridium,” says lead author Hao-Bo Li. “We asked whether cobalt, one of the most common transition metals on Earth, could be made to form the same honeycomb structure and display the same intriguing physics.”

Microscopy confirmed that the cobalt atoms clustered into the predicted honeycomb motifs without creating unwanted secondary phases.

“What excites us is that these cobalt honeycombs appear to form naturally, without any special coaxing,” explains senior author Hidekazu Tanaka. “They even produce a clear magnetic signal that matches what theory predicts for this type of structure.”

Magnetic measurements showed a ferromagnetic-like state near 88 K, or about minus 301 degrees Fahrenheit. Calculations indicate that this behavior comes from the local arrangement of cobalt atoms within the CoO6 structures.

The material has not been shown to host a quantum spin liquid, but it provides a cobalt-based system for studying Kitaev-type magnetism without relying on rare metals.

“Cobalt is relatively cheap, widely available, and already used in semiconductor manufacturing,” remarks Li. “This approach could eventually lead to quantum computing components that are far more practical to produce at scale.”

The researchers are now working to further engineer the material and test its quantum properties in greater detail.

For more information: Physical Review Materials

Physicists find evidence for ‘third’ type of magnetism

Altermagnets are a recently described class of materials that have no net magnetization but display magnetic-like electron behavior. Their unique properties could support advances in spintronics, which uses electron spin to develop faster, more efficient electronics. Because altermagnets do not produce stray magnetic fields, they could also allow devices to be placed closer together without interference.

“Ferromagnetism produces the behavior most people associate with everyday magnets,” said senior author University of Central Florida’s Professor Madhab Neupane and colleagues.

“In these materials, magnetic moments align in the same direction, creating a magnetic field. That property can be useful in electronics, but the resulting stray magnetic fields can interfere with nearby components.”

“Antiferromagnets behave differently. Their magnetic moments point in opposing directions and cancel one another out, largely avoiding the stray fields. However, they lack some of the useful electronic properties found in ferromagnets.”

“Altermagnets offer another possibility by combining desirable characteristics of both,” they added.

“Like antiferromagnets, they can avoid producing unwanted stray magnetic fields. But they can also generate and detect spin currents — the movement of electron spins through a material — that researchers hope to use for future electronics.”

In the study, the researchers used a technique called angle-resolved photoemission spectroscopy, which maps how electrons move inside a crystal, including measurements that distinguish between spin ‘up’ and spin ‘down’ electrons.

They first detected a characteristic splitting in the electronic bands of Co1/4TaSe2.

They then used spin-resolved angle-resolved photoemission spectroscopy to take a closer look and found that those split states carried opposite spin polarizations, key evidence of altermagnetism.

“The significance became clear once the experimental measurements consistently matched our theoretical predictions,” Professor Neupane said.

“Seeing those independent pieces of evidence converge gave us confidence that we had identified a genuine layered altermagnet.”

According to the scientists, the material is distinctive because it is a layered, van der Waals crystal, which could make it easier to combine with other exotic materials, such as superconductors, in layered devices.

Other altermagnet candidates studied so far, mainly manganese telluride and chromium antimonide, are not layered in this way.

“Evidence for altermagnetism in a versatile materials platform opens a lot of new possibilities,” said first author Milo Sprague, also from the University of Central Florida.

“There’s currently a lot of debate in altermagnetic theory about how the spin-polarized electronic states interact with other magnetic phenomena.”

“Now we have a material that we can easily modify to explore these new questions.”

For more information: Nature Communications

Image: Establishment of altermagnetic crystal and magnetic structure in Co1/4TaSe2. Image credit: Sprague et al., doi: 10.1038/s41467-026-76784-x.

Waste milk proteins transformed into sustainable materials

Grouse Fibre is developing ways to transform casein, the main protein in milk, into technical fibers and other advanced materials. The work aims to create value from dairy by-products while supporting a more sustainable, circular economy. Based at SRUC’s Barony Campus in Dumfries, the company has access to specialized laboratories, processing equipment and fresh milk for its research.

The project brought together dairy science and advanced materials engineering. Each day began with fresh milk collected directly from the farm before being processed in the Dairy Research and Innovation Centre, where the milk was separated and the casein recovered. The protein was then refined and tested as the raw material for Grouse Fibre’s fiber-forming technology.

Over the course of the project, the team progressed from laboratory trials to producing casein-based materials at kilogram scale, demonstrating the commercial potential of the technology.

Since completing the Digital Dairy Chain project, Grouse Fibre has continued developing its fibers for technical applications with support from Scottish Enterprise and the Biotechnology and Biological Sciences Research Council (BBSRC).

Dr Tom O’Haire, CEO of Grouse Fibre, said, “The Digital Dairy Chain project has been catalytic for us. The funding enabled our research and unlocked a collaboration with SRUC that has been fundamental to our progress. Exposure to the dairy expertise on campus has allowed us to make significant leaps forward. Access to the Maker Space and laboratory facilities at the Dairy Research and Innovation Centre has provided such an advantage that we have extended our presence beyond the project.”

The collaboration is one example of how SRUC is helping businesses develop innovative products that add value to the dairy sector while supporting sustainable economic growth.

The project also highlights the role of SRUC’s innovation facilities in bringing together researchers and industry to accelerate the development of new technologies. This collaborative approach will continue through SRUC’s Innovation Centre approach, which spans the whole of Scotland, providing businesses with opportunities to access specialist expertise, facilities and partnerships to develop new products and processes.

Dante Coulton, Process Engineer at Grouse Fibre and Technical Lead of the DDC project, said, “Working on the Digital Dairy Chain project with SRUC gave us access to high-quality dairy processing and laboratory equipment, as well as the expertise needed to make the most of it. This was a key factor in the project’s success and led to new ideas and innovative processes that have significantly transformed our production methods and strengthened our expertise in casein and fiber production. It also provided valuable insights into our proteins, from the macro to the micro scale, opening up exciting new opportunities for the future of our business.”

The project was awarded £175,000 as part of the Digital Dairy Chain Collaborative Research and Development Grant Competition, which supports businesses developing innovative solutions for the dairy industry.

Grouse Fibre’s project focused on biorefining waste milk from the dairy industry to create casein-based fibrous materials with multiple use cases ranging from high value technical applications, textile fibers and even as an additive in horticultural growing media

Led by SRUC, the Digital Dairy Chain is transforming the dairy supply chain through innovation, collaboration and business growth across Cumbria and south and west Scotland.

The five-year program is funded by UK Research and Innovation (UKRI) through its flagship Strength in Places Fund, with £21 million awarded to help transform the regional dairy sector and strengthen the rural economy.

The program supports businesses across the dairy supply chain through collaborative research, innovation funding, skills development and access to specialist facilities, helping bring new ideas from concept to commercial reality.

For more information: Scotland’s Rural College (SRUC)
Image: Grouse Fibre has been converting protein found in milk into technical fibers.

Researchers use eggshells to make stronger, lighter metal alloys

Researchers have developed a technique that uses powdered eggshells to produce high-quality magnesium alloys for automotive, aerospace and biomedical applications. The approach offers a low-cost, more sustainable alternative to conventional calcium materials, which require energy-intensive processing from ore.

“For example, calcium carbonate and calcium oxide are important materials for manufacturing metal alloys,” says Bharat Gwalani, corresponding author of a paper on the work and an assistant professor of materials science and engineering at North Carolina State University. “But producing those calcium materials relies on a complex process making use of mined materials. We’ve demonstrated a technique that allows us to skip a step. Rather than processing ore to make calcium materials and then using those materials to produce metals or metal alloys, we’ve shown that you can produce a high-quality metal alloy using eggshells.”

Eggshells are 95% calcium carbonate, and the process the researchers use to incorporate the eggshell into alloys converts it into calcium oxide and nascent calcium.

“There are many benefits to this,” Gwalani says. “There are fewer steps. You have a reliable, sustainable supply chain. Eggshells are inexpensive. And you use far less energy, because you do not have to go through the process of creating calcium products from ore.”

For this proof-of-concept work, the researchers used eggshells to produce stronger, harder magnesium alloys, which have a combination of strength and weight that makes them useful for things like electronics and aerospace equipment.

“Calcium is added to magnesium to improve its mechanical properties,” says Gwalani. “We wanted to see if we could use biogenic waste – eggshells – to produce the necessary calcium materials during the manufacturing process.”

For this process, the researchers begin by drilling a series of evenly spaced holes into a cylindrical block of magnesium. Those holes are then filled with finely ground eggshells. This block is then placed into a steel cylinder. A steel mandrel with a hole in the center is then lowered into the cylinder. The mandrel essentially serves as a pestle in a mortar, pressing down on the magnesium block and spinning at 300 rotations per minute.

This process is called friction stir extrusion. As the mandrel presses down and spins, several things happen at about the same time. The eggshell powder is mixed into the surrounding magnesium, creating friction between the particles of eggshell and the metal. This friction converts the calcium carbonate into calcium oxide and calcium – and produces the high-strength alloy Mg2Ca. Lastly, the downward pressure of the mandrel forces the magnesium alloy out through the hole, producing an extruded rod of the finished product.

“This work shows that you can produce high-value, high-quality magnesium alloys using an inexpensive, sustainable, biogenic waste material,” says Gwalani. “This is a scalable, energy-efficient, and environmentally responsible way to produce magnesium-based composites using biogenic waste materials.

“And we’ve already demonstrated that this approach has applications beyond magnesium and eggshells,” Gwalani says. “We demonstrated earlier this year that you can use the same approach – friction stir extrusion – to produce magnetic composites by grinding magnetic samarium-cobalt (SmCo5) powder into scrap aluminum.”

For more information: Journal of Magnesium and Alloys

Photo credit: Bharat Gwalani.

Rice’s Sanchez exploring a future where fabric itself becomes the robot

Rice University Assistant Professor of Mechanical Engineering Vanessa Sanchez has received the Toyota Programmable System Innovation Fellowship to develop advanced 3D-knitted soft robotic textiles that integrate sensing, movement and mechanical functions directly into fabric. The research aims to create textiles that can adapt to users’ needs, such as enhancing mobility, improving comfort and increasing safety, with the long-term goal of making the textile itself function as a robot.

“We tend to think of fabric as something passive — something that covers, cushions or supports another device,” Sanchez said. “We’re asking what happens when the textile becomes the device itself with sensing, movement and mechanical function built directly into its structure.”

Today’s soft robotic systems often combine fabrics with separate sensors, actuators, electronics and structural components. That can make devices bulky and complicated to manufacture and can limit their ability to comfortably conform to different bodies. Sanchez’s team is taking a different approach. By carefully controlling yarn selection, stitch patterns and three-dimensional knit architecture, she aims to encode mechanical behavior into a textile as it is manufactured. Functional fibers, pneumatic channels and sensors could be integrated into the same knitted structure, allowing a fabric to bend, twist, contract or inflate while also sensing its own movement and interaction with a user.

This approach builds on years of Sanchez’s work in the field of textiles, materials science and robotics — and the unconventional path she took to get here.

Sanchez began using a sewing machine as a young child, and she initially studied fashion design as an undergraduate.

“I began college studying fashion at FIT before transferring to Cornell to study fiber science,” Sanchez said. “That shift helped me realize I could bring together my interests in design and engineering.”

She later earned graduate degrees at Harvard University, where she worked on soft robotic systems designed to assist human movement, before conducting postdoctoral research at Stanford University. Today, she directs Rice’s texlab, where she designs robotic textiles and soft wearable systems.

That combination of textile design and engineering shapes the new Toyota-supported project.

“Textiles are already extraordinarily good at interacting with the human body,” Sanchez said. “They stretch, conform, distribute forces and move with us. If we can add robotic functionality without losing those qualities, we can begin designing systems that are much more natural and comfortable for people to use.”

The 12-month project will focus first on integrating sensing and actuation — the ability to detect changes and produce movement — within the same 3D-knitted structures.

Using materials including conductive fibers, pneumatic channels and composite knitted architectures, Sanchez’s team plans to create textile modules capable of programmed sequences of motion, such as contracting, bending, twisting and inflating.

At the same time, embedded sensing could allow those structures to detect information such as strain, pressure, deformation and loading. Eventually, that capability could enable a robotic textile to sense what is happening to it and adjust its behavior in response.

Sanchez’s lab has already developed technologies featuring textile-based sensors, programmed textile actuators, morphing fabrics and knitted pneumatic actuators capable of producing specific motions based on their structure. At Rice, her group is also investigating AI-guided textile design and new manufacturing techniques for knitted robotic systems.

The fellowship will allow her to begin bringing those capabilities together into more integrated systems.

The second phase of the project will translate those textile systems into prototype technologies relevant to mobility. Possible applications include wearable devices that provide localized assistance to help a person move, seating or interior surfaces that change shape or stiffness in response to a user and soft safety structures that deploy or deform to absorb energy.

The prototypes will be developed in collaboration with Toyota researchers and evaluated for performance, sensing, manufacturability, weight, adaptability and safe interaction with people.

The research reflects a general shift toward designing robots that can operate more naturally alongside humans. For Sanchez, the project is part of a larger effort to expand what textiles can do.

“I’m continuously trying to understand the relationship between fibers and yarns and their structures so well that I can be really innovative and build something brand new,” she said. “Ultimately, I want to use textiles to create new kinds of machines and systems that can support people.”

For more information: Texlab

Image: Vanessa Sanchez in her lab at Rice.

Bio-based wash primer expands validation on industrial carbon steels

The growing need to replace chromated primers used in steel corrosion protection has driven the development of safer and more sustainable alternatives. BIO FLAV PRIMER, a bio-based wash primer developed from valorized agro-industrial byproducts offers an alternative to conventional primers formulated with zinc tetroxychromate, eliminating the use of chromated compounds and combining high corrosion protection with a nontoxic, biodegradable, and environmentally friendly formulation.

The protection mechanism is based on the interaction of natural compounds with the metal surface, where they form a molecular network of chelates capable of stabilizing existing corrosion products and generating a continuous, adherent, and non-porous organic film. This passivating interfacial layer stabilizes the substrate and provides an excellent base for the adhesion of subsequent coatings.

Developed by BIOFLAV Ingenieria de Superficies, comparative studies of the primer conducted on SAE 1010 steel demonstrated superior performance compared to the benchmark commercial wash primer formulated with zinc tetroxychromate, achieving 92% corrosion protection efficiency under the evaluated conditions. While the chromated primer relies on active pigments that are progressively consumed during service, the organic film developed by BIO FLAV PRIMER maintained highly stable electrochemical behavior throughout the evaluation period.

As part of the current technological validation stage, prior to pre-pilot and pilot scale-up, the development is extending its evaluation to other carbon steels of industrial interest. For this purpose, an oil drilling rod made of SAE 4140 carbon steel, discarded after a failure mechanism in service and exhibiting significant surface deterioration, is being used. The use of a recovered industrial component previously subjected to severe operating conditions allows for the evaluation of the coating’s performance in a representative service scenario, providing evidence for the subsequent stages of technological scale-up and its future industrial and infrastructure implementation.

For more information:

BIOFLAV Ingenieria de Superficies

Image – Discarded SAE 4140 carbon steel oil drill rod following a failure in service, after several months of environmental exposure. The upper section, protected with BIO FLAV PRIMER, demonstrates the coating’s versatility: in previously corroded areas, it stabilizes corrosion products through chelation, while the untreated lower section, used as a reference, exhibits generalized oxidation.

Testing metallic glass on the ISS

Researchers Saarland University (Saarbrücken, Germany), are studying metallic-glass alloys in experiments carried out on board the International Space Station (ISS). Working with the European Space Agency and the German Aerospace Center, in the fall of 2026, the team will investigate the properties of these alloys using hot, levitating droplets.

Continue reading

Better metals are now possible through a novel analysis method

In a new study, researchers from Yale University (New Haven, Conn.) show that a mold about half the size of a fingernail could lead to the development of stronger, higher-performing materials for airplanes and other uses. Their novel method provides unique insight into the microstructure and properties of a metal and eliminates the limitations of more traditional analysis.

Continue reading

Minnesota iron ore could be key to sustainable and lower-cost semiconductor

Researchers at the University of Minnesota Twin Cities have, for the first time, demonstrated that Minnesota’s abundant low-grade iron ore can be converted into semiconductor-quality pyrite, also known as iron sulfide or “fool’s gold.” The breakthrough could open the door to more cost-effective and sustainable electronic devices by transforming a widely available natural resource into a valuable semiconductor material. Because pyrite is inexpensive, non-toxic and highly effective at absorbing light, it has significant potential for future technologies, and this research shows that Minnesota’s iron ore resources may provide a viable pathway for producing high-quality semiconductor materials despite the challenges posed by impurities and defects.

Metallic glass to be tested on the ISS: Materials research on levitating droplets in microgravity

A research team led by Saarland University materials scientist Ralf Busch is preparing its first space-based mission aboard the International Space Station, where researchers will remotely study metallic-glass alloys using hot, levitating droplets in a microgravity environment. Conducted in partnership with the European Space Agency and the German Aerospace Center, the experiments aim to generate highly precise data that could help improve the performance of these advanced materials. The unique weightless conditions aboard the ISS eliminate many of the effects of gravity, allowing scientists to better understand alloy behavior and accelerate the development of new materials, with additional space-based experiments already planned.

For more information: Saarland University

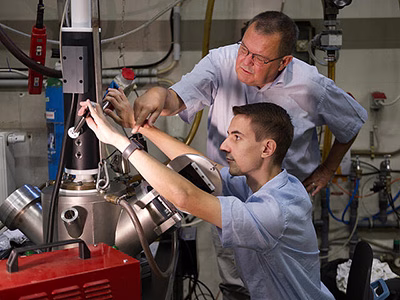

Image: Materials scientist Ralf Busch (standing) and doctoral researcher Lucas Eisenhut beside the apparatus used to melt and homogenize the constituent elements of metallic-glass alloys. The alloys for the ISS experiments were also produced here.

Rice researchers unlock new way to manufacture diamond composites, reveal dramatic response to impact

Rice University researchers have developed a method to keep diamond stable during high-temperature, low-pressure processing, enabling the creation of a durable bulk composite material. Their research also revealed that high-speed impacts can quickly transform diamond into graphite, providing new insight into how diamond absorbs energy and changes under extreme stress. Because diamond combines exceptional hardness with high thermal conductivity, these findings could help scientists design stronger, more resilient materials for aerospace, defense and other high-performance applications.

Small diamond particles are relatively inexpensive and easy to produce, but turning them into larger diamond structures has proved difficult, Ajayan said.

One way to join those particles into a larger structure is through sintering, a process that uses heat and pressure to form a solid. With diamond, however, the high temperatures can turn it into graphite. High-pressure, high-temperature methods can produce polycrystalline diamond, but they require extreme pressure and limit the size of the samples produced.

To keep diamond stable during processing, the researchers mixed microscopic diamond grains with cubic boron nitride, a material with properties similar to diamond, and cobalt to bind and stabilize the mixture.

They used spark plasma sintering, a rapid process that applies heat and pressure to turn powders into a solid. The process produced an extremely strong composite with diamond particles embedded in the boron nitride matrix and cobalt distributed throughout.

“The composite made by this process is almost nonmachinable and tough due to the presence of dispersed diamond particles and could help researchers design tougher materials for aerospace, defense and other technologies that face extreme conditions,” said Abhijit Biswas, first author and research scientist in Rice’s materials science and nanoengineering department.

The researchers then subjected the composite to high-speed collisions to study how it behaved under extreme force.

Researchers fired tiny metal projectiles measuring 1-4 millimeters across at the composite at hypersonic speeds, and the material held together when struck by one of the projectiles traveling at more than seven times the speed of sound. A larger projectile traveling even faster caused the composite to break apart.

During the collision, nearly all the diamonds involved in the transformation became graphite within microseconds.

Diamond and graphite are both made of carbon, but their atoms are arranged differently. That difference makes diamond hard and graphite much softer.

“We found that extreme impact can drive diamond to graphite within microseconds, rather than through the slower heat-driven process we normally associate with this transformation,” Biswas said. “That gives us a new view of how diamonds behave under some of the most demanding mechanical conditions.”

The researchers examined the fractured composite and used molecular dynamics simulations, computer models that track how atoms move and rearrange. Their analysis revealed areas where diamond and graphite met, providing clues to how the transformation occurred.

The study attributes the change to energy from the shock and structural rearrangements that turn diamond into graphite.

The researchers also found that the conversion to graphite helped absorb some of the energy from the collision as the diamond’s atomic structure changed.

The findings offer a closer look at how internal transformations can help toughen materials under severe conditions.

“Understanding how materials change their structure and phase under force, along with their strength and hardness, could help guide the design of future protective materials,” Biswas said.

For more information: Materials Today

Image: Pulickel Ajayan, left, and Abhijit Biswas, right. Photo by Jorge Vidal.

Beyond silicon: Modeling the materials behind the future of electronics

As technology advances beyond traditional silicon-based electronics, organic semiconductors are emerging as a key material for innovations such as wearable sensors, implantable devices and foldable screens. Toulik Maitra, a Ph.D. student in chemical engineering at the University of California, Davis, is helping advance this field through computational modeling that explores how these materials behave at the molecular level. His research recently expanded through a collaboration with Germany’s Max Planck Institute, a world-renowned leader in polymer and organic electronics research, bringing the future of flexible and next-generation electronics one step closer to reality.

Silicon is an excellent semiconductor, capable of switching between conducting and blocking electricity. However, silicon atoms are locked together by covalent bonds, making them strong but also rigid.

Organic semiconductors, on the other hand, are carbon-based materials that can perform the same electronic functions as silicon but are more flexible because their molecules are held together by weak attractions called van der Waals forces.

“It’s the same force that lets a gecko stick to a smooth wall without any glue,” Maitra says.

That flexibility also makes the materials much more difficult to model accurately.

“Due to van der Waals forces, at room temperature, the molecules vibrate, causing each electron cloud to shift in response to its neighbors, or polarization,” Maitra said. “It has a large effect on how charges move through the material and interact with light.”

Capturing this behavior accurately in computer simulations is difficult, slowing the design of new organic semiconductor materials. Maitra’s goal is to computationally model the molecular behavior to design better materials before anyone steps into a lab.

During a six-month appointment as a visiting fellow at the Max Planck Institute for Polymer Research in Mainz, Germany, Maitra and his collaborators set out to capture how shifts in polarization affect charge transport and light interactions.

The international team developed a new computational framework that predicts how individual atoms respond to their molecular surroundings, enabling simulations to more accurately reflect the behavior of organic semiconductors in the real world.

The framework accounts for the unique environment surrounding each atom. It has proven more accurate than conventional methods, which assign the same electronic properties to broad categories of atoms.

It also accurately models molecules in their neutral, charged and excited states — the same conditions they experience inside a working electronic device. When combined with machine learning, the framework can quickly predict these properties for new molecules, enabling researchers to identify promising materials before synthesizing them in the laboratory.

Maitra is already applying these improved modeling techniques to his doctoral research in the laboratory of Adam Moulé, professor of chemical engineering at UC Davis. There, he studies organic semiconductor materials for organic light-emitting diodes, or OLEDs, with a particular focus on thermally activated delayed fluorescence, or TADF, emitters and high-mobility molecules.

Currently, the highest-efficiency OLED displays often rely on rare metals such as iridium and platinum to produce bright, energy-efficient light. TADF materials offer a promising alternative, achieving similar performance with entirely organic molecules.

By more accurately predicting how those molecules will behave before they are synthesized, Maitra hopes to help researchers accelerate the search for efficient OLED materials that reduce dependence on expensive, rare-earth materials.

“I am always excited to move the field forward,” Maitra said. “If this method works, then the next thing you want to model — device performance or vibration analysis — can be done in a better way.”

Maitra will be able to continue his collaboration with the Max Planck Institute at UC Davis in the Moulé Lab thanks to a UC Davis Dissertation Fellowship, which is awarded by UC Davis Graduate Studies to support a Ph.D. student for a year toward the end of their academic career.

The fellowship gives Maitra the time to focus on publishing his research, completing his dissertation and preparing for a career advancing organic semiconductor technologies.

“I believe in this field,” Maitra said. “Working with organic semiconductors will make a better future.”

New insights could help improve quality of 3D-printed aluminium components

Researchers at The University of Manchester found that small temperature variations during molten metal deposition, a metal 3D-printing process, can have a significant impact on the quality of aluminum components. The study showed that carefully controlling thermal conditions during printing can reduce microscopic defects and improve the material’s grain structure, helping produce stronger, higher-quality parts while maintaining the process’s potential for lower energy use and more efficient manufacturing of complex components.

Dr Fan Wu and Dr Wajira Mirihanage, co-authors from the Department of Materials at The University of Manchester said: “Understanding how processing conditions affect the internal structure of a printed component is essential if additive manufacturing technologies are to be used more widely in demanding industrial applications. Our study shows that relatively small adjustments in manufacturing temperatures can have a major impact on defect formation and microstructural development.”

Metal additive manufacturing is attracting increasing attention because it can create complex geometries while reducing material waste. However, many existing techniques involve extremely rapid heating and cooling, which can introduce defects, residual stresses and distortions into the finished part. MMD offers a different approach by depositing aluminium that has already been melted, reducing the intensity of thermal cycling experienced during manufacture.

To understand how the process influences material quality, the team produced aluminium alloy samples using different nozzle and substrate temperatures. They then used advanced microscopy techniques to investigate grain structure, crystallographic orientation and the distribution of microscopic pores inside the printed components. Mechanical testing was also carried out to assess performance.

The researchers found that higher nozzle and substrate temperatures slowed cooling during printing. This led to larger grain structures and increased levels of porosity, tiny voids within the material that can affect performance. In contrast, lower processing temperatures promoted faster cooling, resulting in finer grain structures and fewer defects.

The study also revealed that defect levels and grain size generally decreased as printing progressed through successive layers of a component. This suggests that thermal conditions evolve throughout the build process, influencing how the material solidifies over time. The team identified a strong relationship between grain size and porosity, providing valuable insight into how manufacturing parameters shape material quality.

Despite the presence of some defects, the mechanical properties of the printed components were found to be comparable with those achieved using conventional manufacturing routes. The researchers reported hardness and elastic modulus values that fall within the expected range for aluminium alloy 4043, highlighting the practical potential of the technology.

Dr Fan Wu and Dr Wajira Mirihanage added: “Molten metal deposition is still a relatively new manufacturing technology, and there is currently limited understanding of how processing conditions affect the final material. By establishing clear links between processing parameters, microstructure and defect formation, this work provides a foundation for optimising future manufacturing strategies and improving the reliability of aluminium components produced using MMD.”

The researchers believe the findings will help accelerate the development of molten metal deposition for industrial applications where component quality, consistency and efficiency are critical.

MMD has been developed by ValCUN BV, a Belgium based manufacturer focused on developing deployable and affordable metal additive manufacturing.

For more information: Materials & Design

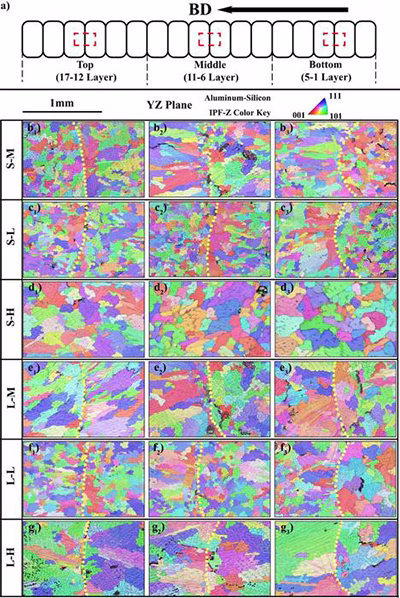

Image: Visualization of the EBSD scan region on the 2D model. Credit: Dr Fan Wu and Dr Wajira Mirihanage, co-authors from the Department of Materials at The University of Manchester

ProtoFund Powered: Students design fast, efficient system to research new materials

Colorado School of Mines students Austin Arvidson and his team developed the Floating Ultrasonic Synthesis Environment, or FUSE, a system that uses acoustic levitation, or sound waves, to suspend materials in a contact-free environment during synthesis. Designed to accelerate the development of new materials while reducing contamination and errors, the project was supported by the Labriola InnoHub E&I Prototyping Fund, which provides funding, mentorship and resources to help students turn innovative ideas into working prototypes.

“If you look up acoustic levitation, or a lot of stuff similar to what we’re trying to do, there’s really not a whole lot of other scientific literature on it, especially in materials science. There’s sort of that aspect of, I don’t know a whole lot, but also it seems like science also doesn’t know a whole lot,” said Austin Arvidson. “It forces you to learn. You could give up, but why don’t you learn something new?”

Arvidson and his co-inventor, John-Austin Little, met while working together on a vertically-integrated research project focused on studying quantum materials. Their concept is novel: An open-sided container about the size of a 3D printer that could be used as a contactless way to synthesize materials. Instead of using an ampoule or another standard container — which runs the risk of having the samples react with the container material — the open-concept system reduces the risk of contamination. One of the biggest advantages to FUSE is speed. Materials synthesis is a common lab practice, but it usually involves multiple people and a lot of time. FUSE could produce the same results, much faster. Little estimates that one FUSE system could process up to 40 samples a day; when using standard lab practices, the same number of samples could take a fully staffed lab about a week.

All year, Little and Arvidson have been working on their prototype, refining the system and testing it with different materials. Their academic backgrounds are nicely complementary for this project – Little is majoring in engineering physics and Arvidson in metallurgical and materials engineering. And while Little understands how the physics of their system supports material synthesis, Arvidson understands materials and the electronics of the system and works on that aspect.

“We always joke that he’s an MME trying to be a physicist and I’m a physicist trying to be an MME. But it does really make for an awesome team,” Little said.

Both admit they’re not experts on acoustic levitation, but figuring out the challenges of the unknown has been fulfilling. Possibly being the researchers to break new ground is an exciting prospect.

“We’re doing old school science, which means we actually have to discover something by just sort of thinking about it and then messing around and seeing how it goes. It’s fun,” Little said.

What kind of materials would work best in FUSE? Little said anything that requires a heating process can be synthesized in FUSE.

“Really anything in any industry that requires some novel material, whether it’s the computer chips in your laptop and the metal in your car, all of those are sort of open playing fields,” Little said. “Anything that we can either melt or heat and get something useful out is a potential candidate for the system.”

Aerospace is a prime example. Alloys used in that industry need to withstand extreme amounts of heat because of the high temperatures jet fuel can reach. FUSE could be used to combine different materials to create custom alloys that work well under extreme heat without expanding or contracting. Little said he could also see the system being used in the energy industry, creating nuclear fuels or battery materials. The list of possibilities is long.

“No one has really been able to float anywhere near as much weight as we’re theorizing that we can with our models and simulations. They’ve all just been much smaller amounts, like a little small drop of water, or other things like that,” Arvidson said. “How you scale this up to float more mass is still an unanswered question,” Arvidson said.

Little and Arvidson still have time to work on the project while at Mines – both are about to complete their first year of undergraduate studies. They plan on continuing to study acoustic levitation and work further on getting scales they created for FUSE into a standalone product, while also refining and iterating the FUSE system.

Because of the ProtoFund and other E&I resources and support at Mines, they’re off to a strong start. Check-ins with ProtoFund mentors have helped them consider possible uses for FUSE they hadn’t before. The McNeil Center for Entrepreneurship and Innovation provided advice on the business aspect of their project and arranged for Little and Arvidson to present their ideas to Mines President Paul C. Johnson and Provost Stefanie Tompkins, as well as other experts.

“It would be impossible to do this without the resources provided by the ProtoFund and the Labriola Innovation Hub,” Little said. “Pull yourself up by your bootstraps is fine, but someone has to show you the bootstrap, and a lot of people have been helping us find those bootstraps. Otherwise, hours and hours of hard work really would just be us banging our head on the wall, and there wouldn’t be all of the eureka moments and the progress.”

For more information: Labriola InnoHub E&I Prototyping Fund

Image: John-Austin Little, left, and Austin Arvidson work on FUSE, a system they created that uses acoustic levitation to synthesize materials.

New method scales up twist-engineered oxide materials for future electronics

Researchers have expanded the field of twistronics by developing a method to manufacture oxide twistronic materials at much larger scales while precisely controlling the twist angles between layered materials. Twistronics focuses on how the alignment of two-dimensional materials influences their structural and electronic properties, and this new technique could help advance research and practical applications by making these materials easier to produce and study.

From weak forces to oxides

“The field of twistronics was developed using 2D materials that are bonded by weak van der Waals forces,” says Ruijuan Xu, corresponding author of a paper on the work and an assistant professor of materials science and engineering at North Carolina State University. “Our work here demonstrates it is possible to use layers of oxide materials that are connected by strong chemical bonds—while precisely controlling the twist angle between crystalline oxide membranes.

“The strong interlayer bonding we found between oxide layers suggests there may be entirely new interfacial phenomena to explore,” adds Xu. “We’ve demonstrated the ability to control many of the materials’ characteristics—including phase structure and domain configuration—in ways that offer new routes for designing materials and devices tailored to specific applications.”

Building large-area twisted membranes

For this work, the researchers synthesized crystalline sodium niobate (NaNbO3) membranes and used photolithography to create a set of visual markers along the perimeter of each membrane. One NaNbO3 membrane was then lifted and placed on top of another NaNbO3 membrane. The researchers monitored the alignment of the visual markers during assembly to precisely control the relative twist angle between the two layers. Once they established the desired angle, they performed a material-specific annealing process to establish strong chemical bonding between the layers.

“Scale matters for devices,” says Xu. “Because these crystalline membranes can be fabricated over large areas and transferred onto different supports, this approach provides a practical path toward twist-engineered oxide electronics.”

Atomic distortions at the interface

The researchers also used synchrotron X-ray diffraction techniques to capture what is happening at the interface between the two layers.

“We found that the bonds between the two layers are so strong that they are distorting the atomic structure of the material—creating a gradual rotation of the atomic lattice at the interface between the layers,” says Xu. “We also found changes to the phase structure of the material. It remains to be seen how this will affect material properties, but that’s something we are exploring.”

Extending the method beyond sodium niobate

The researchers note that while this work was done using NaNbO3 as a model, the technique could be extended to other complex oxides.

“Our work demonstrates a technique for creating large-area oxide twistronic materials with controlled twist angles and a strong chemical bond between layers,” says Xu. “It’s an exciting time for oxide twistronics, with new opportunities to engineer complex oxide functionalities through twist.”

For more information: ACS Nano

New state-of-the-art facility provides access to advanced materials, manufacturing tools

A new facility at Arizona State University’s Tempe campus will give researchers and corporate partners access to a wide range of advanced materials and manufacturing tools, supporting work with cutting-edge technologies. The Biodesign Institute marked the opening with a ribbon-cutting ceremony and facility tours earlier this month.

Managed by the Biodesign Center for Sustainable Macromolecular Materials and Manufacturing, or SM3, the facility houses tools that support research such as scanning electron microscopy, thermal analysis, light scattering, mechanical testing, gas permeability measurements, water uptake analysis and rheological testing to better understand and optimize material performance.

The lab also features cutting-edge additive manufacturing technologies, ranging from extrusion-based systems to light-driven 3D printers.

Among its most notable additions is the Cubicure Caligma printer, the first system of its kind in the United States capable of integrating extrusion and light-based printing at the micron scale, opening new possibilities for precision manufacturing and materials development.

The new laboratory represents the transformation of the former ASU Biodesign Clinical Testing Lab — best known as the site of the university’s large-scale COVID-19 saliva testing operations — into a state-of-the-art research hub dedicated to advancing sustainable materials innovation.

The facility is already serving a growing community of researchers, with approximately 60 faculty members, students and staff from across ASU utilizing the space and its resources.

By bringing together expertise in materials science, engineering, chemistry and manufacturing, the center aims to accelerate the development of sustainable products and technologies while strengthening Arizona’s innovation ecosystem.

During the ceremony, attendees heard from Biodesign leaders and industry partners about the importance of investing in shared research infrastructure that can support both fundamental discovery and commercial translation.

“We’re focused on sustainability,” said Tim Long, director of the Biodesign Center for Sustainable Macromolecular Materials and Manufacturing. “And these days what does that mean? That means resiliency. It means supply chain. It means using our resources more effectively. It means being more competitive as a nation, more competitive with our companies and more effectively educating our students, the future generation, the future workforce.”

The new laboratory is also expected to serve as a catalyst for expanded partnerships with leading instrument manufacturers and private industry, helping drive Arizona-based product innovation and workforce development.

Industry representatives participating in the event highlighted the value of collaborative research environments that connect academic expertise with real-world challenges.

“What this expansion does in practice is reduce friction,” said Jeff Addy, an ASU alumnus and research and development manager from Cargill Bioindustrial. “It means you can move from an idea to real data faster, ask better questions and iterate more quickly. That changes the kind of work you can do, not just how fast you can do it.”

Following the ribbon cutting, guests toured the laboratory and explored the technologies that will support the next generation of sustainable materials research and manufacturing at ASU.

For more information: Biodesign Center for Sustainable Macromolecular Materials and Manufacturing

Image: Industry collaborators tour the Biodesign Institute’s new shared manufacturing lab managed by the Center for Sustainable Macromolecular Materials and Manufacturing on Tuesday, June 9. The facility provides access to advanced tools that support electron microscopy, thermal analysis, light scattering, mechanical testing, gas permeability, water uptake, rheology and 3D printing. Photo by Charlie Leight/ASU News

Designing matter at the nanoscale

Toni Taylor, a Los Alamos National Laboratory fellow and physicist, recalls that early terahertz research was hindered by the lack of modulators—devices that control light’s amplitude, phase or frequency—making it difficult for this promising band to reliably carry information for communications and medical applications. Situated between microwaves and infrared light, the terahertz range is too fast for conventional electronics and too slow for traditional optics, leaving it largely unmastered compared with other parts of the electromagnetic spectrum that drove advances such as radar and photonics. Because terahertz waves pass through typical modulator materials with little absorption or reflection, scientists have had limited ability to control them, creating what is known as the “terahertz gap” and leaving significant technological potential untapped.

Terahertz waves oscillate trillions of times per second, hundreds of times faster than the microwave-frequency systems used in today’s wireless networks. In principle, that behavior means they could carry vastly more information than today’s fastest consumer networks. But communications is only part of the appeal. Like x-rays, terahertz radiation can penetrate many nonmetallic materials, but unlike x-rays, it doesn’t ionize atoms, meaning it doesn’t change the materials’ structure. In theory, that makes terahertz radiation well-suited to nondestructive probing of delicate materials, from biological tissue to concealed explosives. “There just weren’t good photonics devices there,” Taylor says. “At the time, neither naturally occurring materials nor manmade alloys interacted strongly enough in that band to control it.”

By the early 2000s, when Taylor and coworkers began working in the terahertz band, the computer revolution had pushed technology to an inflection point. Moore’s Law was still busy shrinking transistors, but devices had reached dimensions small enough that quantum effects shaped performance. Advances could no longer come from simply making components smaller. To keep accelerating computation, materials had to be designed down to the level of their very atoms.

For the first time, nanoscale engineering, working at dimensions of billionths of a meter, where materials behave in fundamentally new ways, was becoming practical. Long before nano products were built, scientists could model them on supercomputers that predicted how electrons and electromagnetic waves would behave in such tiny structures. Cleanroom fabrication techniques refined by the microelectronics industry were building structures smaller than one hundred nanometers with remarkable precision, while scanning tunneling microscopes and atomic force microscopes made it possible not only to image the placements of individual atoms but, in some cases, to nudge them deliberately into place.

All of these technological factors, plus the promise of the capabilities they enabled, led the Department of Energy’s Office of Science to create the Center for Integrated Nanotechnologies, a centerpiece facility among a national network of nanoscale research centers. Opened in 2004 and jointly operated by Los Alamos and Sandia national laboratories, CINT was built as a user facility, a place where scientists from around the world could propose ideas and gain access to specialized tools and expertise. Housed within this tightly integrated environment, researchers could move from theory to synthesis to fabrication to characterization—all at the nanoscale.

For researchers like Taylor, CINT turned the terahertz gap from an abstract limitation into an engineering problem. “All of the tools needed to develop the modulators were at CINT,” Taylor says. Her team’s work on the project began in earnest in 2006, when a postdoctoral researcher named Willie Padilla arrived at Los Alamos with expertise in metamaterials: artificially structured surfaces engineered to manipulate electromagnetic waves in ways natural materials cannot.

The way a material traditionally absorbs or reflects light is dictated by its atomic composition—the electronic transitions and vibrational modes built into its chemistry.  Padilla’s insight was that they no longer had to rely on the electronic structure of naturally occurring materials to support a resonance at terahertz frequencies. They could engineer a material instead.

Using CINT’s modeling tools, he and his collaborators designed metallic patterns sized to resonate at terahertz frequencies: tiny, repeating loops and gaps etched into a thin film of gold. When a terahertz wave struck the patterned surface, its oscillating electric field drove the metal’s free electrons back and forth. If the geometry was right—if the loops and gaps were sized precisely for that frequency—the electrons would move in sync with the incoming wave. The energy in the terahertz waves that would otherwise have passed quietly through the material was briefly captured, scattered, or absorbed. Like radio antennas tuned to a single station, the gold resonators responded strongly only at the frequency dictated by their shape.

But this was still a passive response, like a filter or detector. The resonator device could isolate or suppress an individual frequency, but couldn’t change that frequency in real time. Without time-dependent control, it wasn’t yet useful for information transmission. To do that, Padilla, along with his coworkers Hou-Tong Chen, Richard Averitt, and Taylor had to find a way to modulate the signal itself.

The solution lay in setting the patterned metal resonator atop a semiconductor substrate. By injecting charge into that substrate—electrically or with an ultrafast optical pulse—the team temporarily increased its conductivity. That shift altered how freely the electrons in the resonators could oscillate. When the substrate became more conductive, the oscillations dissipated energy more quickly and the response weakened; when it was less conductive, the resonance sharpened. In practical terms, a static surface had become a controllable gate. A region of the spectrum long considered technologically awkward could now be modulated in real time. The work culminated in a 2006 paper demonstrating active control of terahertz radiation.

What followed was not just a device, but a new way of thinking about matter: that it could be modified at the nanoscale to realize ideas once confined to theory. Taylor’s group went on to pursue higher-speed modulators, tunable filters, polarization rotators, and broadband converters. They extended the same nanoscale design principles to problems across national security and optical communications. More recently, collaborators demonstrated structures that can generate and steer terahertz radiation with unprecedented control. That approach has contributed to advances in security imaging seen at airports, materials diagnostics, and next-generation wireless research. Recent experimental terahertz systems achieved data rates exceeding 100 gigabits per second, far beyond typical consumer wireless speeds.

Terahertz modulation is only one expression of CINT’s broader vision. Across the Center, researchers have applied the same integration of modeling, fabrication, and measurement to problems ranging from quantum dots to structural materials. Victor Klimov and Jennifer Hollingsworth engineered quantum dots whose optical gain and emission can be tuned with atomic precision, advancing solar technologies, microelectronics, and quantum information science. Other Los Alamos teams designed nanoscale defect architectures to strengthen materials and built atom-scale emitters matched to fiber-optic telecommunications bands. Each effort differs in application, but they share a methodology enabled by CINT: design at the nanoscale, fabricate precisely, measure rigorously, iterate quickly.

“We wanted to understand the materials and then design them to do the thing that we wanted them to do,” Taylor says. The science has advanced since the early days of terahertz modulators. The ambition remains the same: to design matter itself.

For more information: Los Alamos National Laboratory

Nikhil Bajaj’s $649K NSF CAREER Award reverses the design process for devices from microsensors to aircraft wings

Nikhil Bajaj, an assistant professor of mechanical engineering and materials science at the University of Pittsburgh’s Swanson School of Engineering, studies nonlinear systems that shift behavior once a threshold is crossed—phenomena seen across disciplines in devices that rely on bifurcation to enhance sensitivity and performance. He has received a $649,684 National Science Foundation CAREER Award to rethink how these systems are designed, moving away from trial-and-error tuning toward an approach that starts with a desired behavior and engineers backward. His framework targets applications such as micro-electro-mechanical systems, including ultrasensitive gas leak detectors capable of identifying hazardous compounds at parts-per-billion levels, as well as energy harvesters and aerospace structures.

In a system with bifurcations, a quantitative change produces a qualitative one: a change in the value of the input changes the type of outcome. Once a certain threshold is met, the system doesn’t do more of what it was doing; it instead does something different. For example, a somewhat flexible column loaded with heavier and heavier weights will compress more and more, but once a specific load is placed on it, it will move in a different way, bulging out to one side or buckling.

Today, researchers can characterize these kinds of systems using a lot of trial and error and analogies to previous systems. “Say I’m building a car, and I want it to have 400 horsepower,” Bajaj said. If he didn’t know how to hit that number, he might take any engine and keep tweaking it, tightening something here, disconnecting a part there, until it worked. And horsepower is an easy case, a smooth dial you can turn up or down. The challenge multiplies when the goal is a threshold behavior: getting a system to switch into a new kind of motion at exactly the right input, and not a moment before.

“Designing in bifurcation behavior can feel a bit like working in the dark,” Bajaj said. Even so, the field has made remarkable progress. Across nonlinear systems, libraries of relationships have accumulated for many decades as researchers test inputs and observe outputs via theory and experiment. They’ve found that systems with bifurcations of all kinds (a wing vibrating erratically at speed, a material buckling under pressure, a neuron firing in the brain) seem to be governed by similar principles. The equations aren’t identical, but when systems engineers compare notes, they find meaningful similarities behind the different variables and outputs.

“We play the same mathematical games, just on different fields,” Bajaj said. At a nonlinear dynamics conference, he might have a specific engineering question on his mind. “But then I could run into someone doing the same thing on a biological system and I think, ‘I can use their method to apply to my problem.’”

The award also supports an education plan that spans the length of the pipeline. Bajaj will carry the science of nonlinear behavior (the buckling and the sudden shifts that turn up everywhere from bridges to neurons) to K–12 students and the public through science center and library exhibits, and will fold the same design methods into undergraduate and graduate coursework. A layered mentorship model reaching students at different stages aims to broaden participation in STEM, giving newcomers both a way in and a reason to stay.

Bajaj will use his CAREER Award to develop a unified computational framework for designing nonlinear systems from a desired behavior, rather than discovering their behavior through trial and error. “I want to pick all my parameters, all the knobs I can turn, so that it does the things I want it to do and not necessarily the things that are undesirable.” The framework is intentionally general; he will demonstrate the approaches on small and large scales, from MEMS gas sensors at the micrometer scale to flutter in aircraft wings.

For more information: U.S. National Science Foundation

Team builds best-performing detection system for next-generation accelerators

Physicists at UC Santa Cruz and partner institutions in California and New Mexico have developed a new detection system designed to improve next-generation particle accelerators, enabling more precise studies of fundamental biological and chemical processes and supporting advances in materials science and energy research. The effort, led by the Advanced Accelerator Diagnostics Collaboration, which includes two University of California campuses and three U.S. national laboratories, addresses the growing need for high-rate beam diagnostics as accelerator performance increases from 120 pulses per second to as many as 1 million pulses per second, a jump that strains existing diagnostic systems.

“It really highlights the power of collaboration between universities and national laboratories,” said Bruce Schumm, the Long Family Professor of Experimental Physics. “If you took away Lawrence Berkeley Lab, if you took away Los Alamos, if you took away UC Davis, any of those, the whole thing would have fallen apart.”

The fruits of this years-long collaboration are nothing less than the best-performing high-bandwidth particle detection system built to date. The system combines artificial diamonds, custom microchips, and cutting-edge assembly techniques into a compact detector designed for measuring the properties of the beams shot by advanced accelerators like the Linac Coherent Light Source II at SLAC National Accelerator Laboratory in Menlo Park.

Need for speed

As next-generation particle accelerators continue to develop, they will have faster and faster bursts of charged particles that are close to each other in time. This means the researchers using them will need to create new, faster ways to measure these beams and control their properties.

“Nobody was building things that can measure, diagnose the beams and help control the accelerator, and also help the experimenters to unravel the data,” said Schumm.

At these high rates of beam repetition—eventually reaching beyond one billion times per second—existing detection systems fail. To overcome that barrier, the Advanced Accelerator Diagnostics Collaboration set out to redesign the entire detection chain from the sensor material itself, to the electronics used to read out the signal.

“It required developing a new approach to processing the signal, and also a new integrated circuit chip that we designed ourselves and then characterized,” said Schumm. “This is the first time we put it all together and put it into a beam.”

For more information: Physical Review Accelerators and Beams

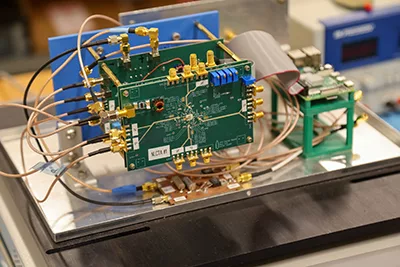

Image: The detection system along with associated hardware for electronic conditioning and control. Photo by Carolyn Lagattuta.

UCLA researchers refine use of graphene oxide for stronger, more durable concrete

A UCLA-led study shows that adding graphene oxide, a carbon-based nanomaterial, to cement mixtures can produce stronger, more durable concrete, with performance driven more by even distribution than by quantity. Researchers found that ultrasonic treatment improves dispersion and delivers early strength gains at lower dosages, while controlled use of polymer surfactants helps enhance long-term strength by refining pore structures and reducing microcracks. The findings suggest practical ways to use less cement and lower carbon dioxide emissions tied to cement production.

Concrete is the world’s most widely used building material. Cement, the binding ingredient in concrete, accounts for about 8% of global carbon dioxide emissions. Enhancing the efficiency of cement use is therefore essential, as it would reduce the amount needed to build infrastructure — including buildings, roads and bridges — and help lower overall emissions. Graphene-enhanced concrete could last longer and require fewer repairs because stronger concrete cracks less easily and better resists water intrusion and corrosion, which in turn can increase its service life.

Researchers have known for more than a decade that adding graphene oxide to cementitious mixtures can increase concrete’s mechanical performance. However, earlier approaches produced inconsistent results, limiting suitability for commercial use.

To address this challenge, the UCLA team first dispersed graphene oxide powder in water and used ultrasound — the same type of technology found in inexpensive jewelry cleaners — to break up clumps and create a uniform mixture. They then added a moderate amount of polycarboxylate ether, or PCE, a common polymer additive that improves the mixture’s fluidity without adding extra water. This optimized sequence controls the exposed surface area of graphene oxide, thereby delivering strength gains at very low dosages, as little as 0.01% by mass of cement.

Graphene oxide is a nanomaterial derived from graphite and composed of carbon sheets one atom thick. In laboratory tests, adding graphene oxide to cementitious formulations using the optimized process improved the compressive strength by up to 25% after 28 days. The porosity was also significantly reduced by up to 50% as graphene oxide bridged microcracks, resulting in a denser structure.

“This study provides a comprehensive mechanistic framework to combine ultrasound processing, particle dispersants and small additions of graphene oxide to improve the performance of concrete,” said study co-corresponding author Gaurav Sant, a professor of civil and environmental engineering and the Pritzker Professor of Sustainability at the UCLA Samueli School of Engineering. The breakthrough builds on a long-term collaboration between Sant and co-corresponding author Richard Kaner, a distinguished professor of chemistry and biochemistry, through UCLA’s Institute for Carbon Management.

“Our group has spent nearly 20 years refining the synthesis and processing of graphene oxide, and more than a decade working with industry partners to scale production with consistently high quality,” said Maher El-Kady, a researcher working with Kaner. “It’s exciting to see that long-term effort culminate in a study with such clear societal relevance.”

The study’s first author is UCLA postdoctoral researcher Zhi Wan. The other co-corresponding authors are Torben Gädt, chair for the chemistry of construction materials at the Technical University of Munich, and Samanvaya Srivastava, a UCLA associate professor of chemical and biomolecular engineering. Additional UCLA authors include postdoctoral scholar Rui Xiao and chemical and biomolecular engineering graduate student Vihar Trada. Arizona State University researchers Sahil Surehali, a postdoctoral scientist, and Narayanan Neithalath, a professor of sustainable engineering, are also authors on the study.

At UCLA, Kaner holds the Dr. Myung Ki Hong Endowed Chair in Materials Innovation and has a joint appointment in materials science and engineering at UCLA Samueli. Sant is the director of the Institute for Carbon Management and holds a joint appointment in materials science and engineering. Both are faculty members with the California NanoSystems Institute.

For more information:  ACS Applied Engineering Materials

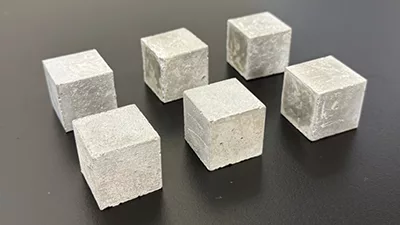

Image: Cement test samples (3-centimeter cubes) containing graphene oxide.

USC researchers develop 3D-printable MRI coils for low-cost, improved dynamic imaging

Diseases affecting moving organs such as the heart and lungs require dynamic imaging rather than static scans, yet limitations in current MRI technology often hinder early detection and diagnosis. Traditional MRI sensors are costly, rigid, and unable to conform closely to the body, reducing image quality and flexibility. To address this, researchers at the University of Southern California developed a low-cost, silver-ink MRI coil that can be 3D printed in under 10 minutes for patient-specific use. The coil costs about $30 in materials — significantly less than traditional models — and delivers up to four times higher image resolution, improving access to more reliable dynamic imaging.

USC researchers, Yasser Khan and Krishna Nayak teamed up to develop a new silver-ink based MRI coil that costs about $30 in consumable materials, compared with at least thousands of dollars for industry-standard coils, and delivers up to four times higher image resolution. The coils can also be 3D printed in real time in under 10 minutes, enabling patient-specific customization.

The study has removed key barriers in dynamic imaging and represents a major breakthrough in MRI technology, with broad applications in clinical settings such as pediatrics and cardiology.

The work was made possible by bringing together two researchers from USC Viterbi School of Engineering and USC Mark and Mary Stevens School of Computing with expertise in wearable sensors for precision health and MRI imaging: Khan, an assistant professor in the Ming Hsieh Department of Electrical and Computer Engineering and with joint appointments in the Alfred E. Mann Department of Biomedical Engineering, who leads Khan Lab; and Nayak, a professor of electrical and computer engineering, also with a joint appointment in biomedical engineering, who leads the Dynamic Imaging Science Center (DISC). The research was also spearheaded by Félix Muñoz, a student they co-advised, as well as Ye Tian, a research assistant professor in the Ming Hsieh Department of Electrical and Computer Engineering. The team also included Prof. Min-gu Kim, an assistant professor of medical engineering at Yonsei University in Korea.

John Wood, a close collaborator from the Keck School of Medicine of USC and the Children’s Hospital Los Angeles, emphasized that this is a game-changer, noting that MRI screening is a platform technology essential for detecting undiagnosed conditions in patients, including children and infants. He added that coil sensors play a critical role in diagnostic accuracy and clinical decision-making.

Expensive and Low-resolution MRI Scanners

Like cameras that detect light waves to form images, MRI scanners process and create images or videos using radiofrequency (RF) signals.

The visual data is made possible with MRI “coils,” which are specialized antennas placed close to the bohiiidy part being imaged to detect weak radiofrequency signals emitted by tissues, acting as the receiver for producing high-resolution images.

In the MRI world, the equivalent of camera resolution is called signal-to-noise ratio (SNR). To capture motion in MRI scans, specialized low-field MRI (0.55T) is used to enable dynamic, real-time imaging of motion-intensive processes by leveraging reduced susceptibility artifacts and faster data acquisition.

However, capturing video is particularly difficult at low magnetic field strengths (0.55T) because the signal is inherently weaker, which leads to lower SNR, and consequently lower resolution. Low SNR reduces image quality, making it more difficult for physicians to make accurate clinical assessments.

Today’s standard commercialized coils face many challenges, with low comformity being the biggest limitation. Current coils, typically made of copper, are rigid and follow a one-size-fits-all design. They cannot maintain the close contact required to recover enough signal for high-quality, video-rate imaging. The closer the sensors are to the signal source, the clearer the “picture,” and the closer a coil is to the anatomy, the better the resolution because proximity increases signal strength.

Existing MRI coil arrays are also expensive, priced between $10,000 and $50,000 each.

These high costs are driven by complex manufacturing processes, proprietary markups and rigid, specialized construction that can take significant time to produce. This cost and manufacturing complexity reinforce rigid designs as the commercial standard, making personalization difficult and continuing to limit imaging accuracy.

The limitations of current MRI technologies heavily affect babies and children, as Wood explained that existing coils are designed for adults and then scaled down for children, a process that often fails to accommodate the rapid anatomical changes in growing infants. This sizing mismatch makes MRI screening less accurate in pediatric patients. He also noted that “an infant’s heart can be as small as a walnut,” requiring a coil that is equally small and well-fitted to produce accurate results—something that current, non-customizable coil designs cannot adequately provide.

Silver-based MRI coils as solution: Flexible as human skin and engineered for higher SNR

In the study, Khan’s team aims to tackle the low SNR problem by designing coils that better fit the skin, allowing sensors to be closer to the body.

The lab first experimented with innovative materials that could maintain strong signal performance while being flexible enough to conform to the body like human skin—a longstanding challenge in MRIs for dynamic imaging.

A major limitation with flexible or printed conductors is that they typically have lower conductivity than solid copper, which introduces resistive losses and reduces signal-to-noise ratio (SNR). On the other hand, current industry-standard copper coils lack the flexibility needed to maintain close contact with the body. As high conductivity is key for strong SNR, most flexible materials have historically failed to deliver imaging performance comparable to copper.

Khan’s lab identified silver as an optimal material as it offers conductivity comparable to copper while enabling flexibility when printed onto soft, rubber-like substrates such as thermoplastic polyurethane (TPU). The researchers tested various silver inks and selected one formulation, FS0142, that achieved approximately 95% of the signal efficiency of a standard solid copper coil—the first time researchers are able to successfully address the conductivity challenge while maintaining flexibility for dynamic imaging at lower field.

The silver ink is combined with a specialized binder that makes it stretchable, allowing the printed coil to stretch between 5% and 10%, closely matching the natural stretchability of human skin. This enables the coils to wrap tightly around complex anatomical structures, such as the wrist, while maintaining consistent contact.

These new coils, which are as soft and stretchable as human skin, overcome the longstanding tradeoff between rigidity and conductivity. By ensuring a conformal interface where the coil remains in constant contact with the body, the design can effectively replace traditional copper coils while significantly improving imaging performance.

The $30 Breakthrough: 3D-Printed Coils That Are Customizable in Under 10 Minutes

The new coils are also drastically cheaper in both material cost and manufacturing, dropping the price of a standard coil from as much as $50,000 to about $120 per coil.

Muñoz explained that this is partly because the quantity of material needed per coil in his team’s study is extremely small, bringing the consumable cost to roughly $30 per element, despite silver being an expensive and precious metal.

The other key aspect contributing to the low cost is the lab’s automated workflow, which enables coils to be completely 3D printed. Unlike traditional coil manufacturing, which requires complex machinery, proprietary processes and intricate assembly steps that are costly, labor-intensive, the new coils introduced in the study can be produced in as little as eight minutes per element.

These coils are designed using standard Gerber files—the same format used to manufacture circuit boards—allowing for a fully digital workflow. By using automated tools such as the Voltera NOVA printer, a direct-ink-write system, the need for manual routing or complex housing assembly is eliminated, enabling rapid digital fabrication.

This innovation not only reduces cost but also expands the potential for MRI to become more accessible, instead of a limited, high-cost resource. The simple, low-cost, real-time production of these coils allows for on-demand manufacturing tailored to specific patients or body parts, further addressing the longstanding challenge in customization. This makes it possible to create coils of varying sizes, including those small enough for infants.

Because the coils are inexpensive and can be analyzed using low-cost, portable tools, the technology could expand access to high-quality MRI in rural or resource-limited settings worldwide.

At USC, New Coils Meet the World’s Only Low-Field High-Performance MRI System

This work was made possible through a unique collaboration at the University of Southern California, where the newly developed coils could be directly tested on a rare high-performance low-field MRI system—creating an environment that enables proprietary research, innovation and cross-disciplinary collaboration.

A key advantage is the close partnership between Yasser Khan’s lab, which developed the coils, and the Dynamic Imaging Science Center. The center houses a highly specialized MRI scanner: a 0.55 T low-field prototype, a modified 1.5 T Siemens MAGNETOM Aera system, that is now the only one of its kind still operating in the world.

The scanner at DISC offers several technical advantages that make it an ideal match for the new flexible coil technology. Its advanced gradient system enables extremely fast scans, which are essential for capturing high-quality, video-rate dynamic imaging. At the same time, like most low-field MRI systems, the scanner at DISC suffers from lower signal. The flexible coils developed in this study address that limitation by improving signal capture and image quality.

What’s Next: Clinical Use and Patient Testing

The study’s MRI coils have generated strong interest among physicians. Khan said the team’s goal is to move the coils from the lab into clinical settings, with patient testing as a key next step.

Nayak identified pediatric lung imaging as a likely first clinical application to be tested, with John Wood expressing strong interest in eventually adopting the technology for patient care.

“It starts with a signal,” Wood emphasized, noting that regardless of the medical condition, the diagnostic process begins with signal and image quality. He said the study introduces significantly improved signal strength, which could enhance MRI as a platform technology across many diseases and help physicians make more accurate clinical judgments.

Wood emphasized that the technology could be especially impactful for the smallest and most fragile patients, including premature infants. An infant’s heart is extremely small and beats rapidly, making it traditionally difficult to image. Improving signal by bringing the “lens”—the coil—closer to the body allows for clearer visualization of these tiny, fast-moving structures. Screening is a critical first step in identifying conditions in infants, who are more vulnerable to heart and lung diseases or structural abnormalities that require accurate imaging.

Wood also envisions new diagnostic pathways for common infant conditions, including monitoring lung development in bronchopulmonary dysplasia, evaluating swallowing function to prevent aspiration, and studying gastrointestinal malformations.

Muñoz also highlighted applications in wrist injuries, which require clear dynamic imaging of moving joints to identify conditions. In testing, the team’s wrist coil arrays achieved four times higher contrast and five times greater sharpness than commercial coils, allowing clinicians to resolve fine structures such as carpal ligaments that were previously difficult to see.

While the coils were developed to address challenges in dynamic imaging, Wood sees broader applications in standard, still-image MRI scans across a range of clinical settings.

For more information: Nature Communications

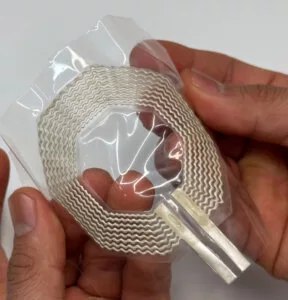

Image: The study’s new MRI coils. (Photo Credit: USC Khan Lab)

Researchers measure giant light-conversion effect in chiral carbon nanotubes

A sheet of twisted carbon nanotubes has revealed a long-suspected but previously unmeasured capability, as researchers at Rice University created highly ordered films of chiral nanotubes — carbon cylinders with left- or right-handed twists — that can convert the color of light at rates two to three orders of magnitude greater than conventional materials. The findings confirm decades-old theoretical predictions and suggest ultrathin nanotube films could advance faster optical communications, flexible photonic chips and light-based computing systems that largely remain in early stages.

Since their discovery in the 1990s, carbon nanotubes have been touted as carriers of enormous technological potential due to their tunable conductivity, high mechanical strength, flexibility and ultralow weight. However, they are also difficult to purify and align into larger material architectures.

This holds true for chiral CNTs, whose “handedness” makes them especially difficult to work with.

“Typically, when we have a macroscopic ensemble of carbon nanotubes, half of them are right-handed and the other half are left-handed,” said Junichiro Kono, a senior researcher on the study. “So, their chiral properties cancel each other out.”

That cancellation effect has prevented researchers from measuring one of the material’s most anticipated properties, second harmonic generation (SHG), which occurs when two light waves pass through a material and combine into one new wave with twice the frequency and half the wavelength. For example, due to SHG, two infrared light waves invisible to the human eye can be converted into visible light.

“Theory predicts chiral CNT should be particularly good at such conversion,” said Hanyu Zhu, a Rice materials scientist who led the study alongside Kono. “However, no one was able to quantify this ability because it requires high-quality, pure chiral CNT crystal.”

The Rice-led team solved that challenge by isolating nanotubes with a single handedness – a step carried out by the group of Kazuhiro Yanagi at Tokyo Metropolitan University – aligning them in the same direction and assembling them into thin films spanning several centimeters.

“We successfully made a wafer of film packed closely with chiral CNTs that showed uniform optical properties,” said Kono, director of the Smalley-Curl Institute at Rice and Karl F. Hasselmann Professor in Engineering, professor of electrical and computer engineering and materials science and nanoengineering, and physics and astronomy.

When illuminated with laser pulses, the chiral CNT films produced a “giant” SHG response thanks to their one-dimensional structure, where “one-dimensional” describes materials with two dimensions on the order of a nanometer and a third, much larger, dimension that gives rise to wire- or tubelike architectures.

This structure intensifies interactions between light and matter, particularly through coupled electron-hole states known as excitons. The importance of excitons in the SHG process was theorized by two team members, Vasili Perebeinos at the University at Buffalo and Riichiro Saito at Tohoku University.

“For the first time, we were able to make a more accurate prediction of one-dimensional second-order nonlinear optical response and experimentally demonstrated it,” said Zhu, associate chair and professor of materials science and nanoengineering.

SHG already plays an important role in laser technology and optoelectronic systems. The stronger the SHG effect is, the smaller the devices can be to control and convert light for technology. Chiral CNTs not only outperform materials currently in use in terms of SHG, but they are also flexible, widening the range of applications they could serve.

“CNT is a promising flexible semiconductor for electronics and photonics,” Zhu said. “The film may be easily integrated with silicon photonics for optical information processing and communication.”

For more information: ACS Nano

Image: Hanyu Zhu is the William Marsh Rice Chair and associate professor of materials science and nanoengineering at Rice University. (Photo by Jeff Fitlow/Rice University)
